Prima DNT Microscope Premium with mobile stand and NuVar 20, 4K camera and HDMI wireless

The Prima DNT dental microscope reflects a performance-driven and modular design for the evolving needs of today’s dental professional. With an intelligent LED illumination system, crisp optics and fluid articulation, the Prima DNT is a technology leader among dental operating microscopes.

A super bright LED delivers over 135,000 Lux with a natural daylight colour temperature. A run time of up to 60,000 hours eliminates the need for frequent bulb changes. Built-in electronics make for the most compact arm system around.

An Apochromatic optical system produces superior resolution and artifact-free images for excellent visibility. Proprietary MaxLite™ coatings promise reflection-free and durable optics.

The NuVar™ objective delivers variable working distances, making the Prima DNT more versatile and user friendly for dental professionals.

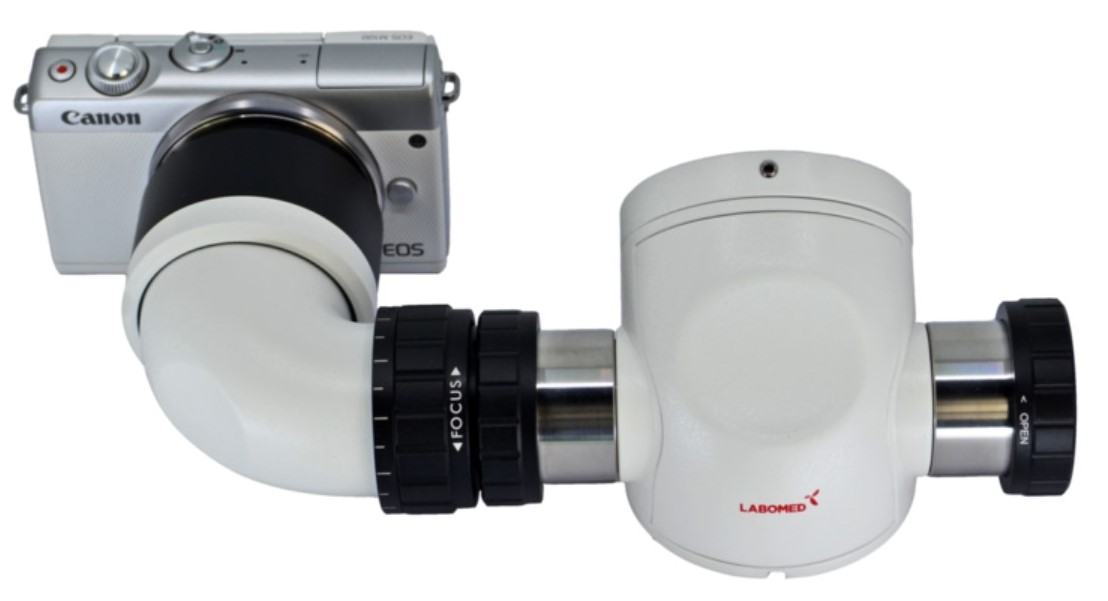

including: Double beam Splitter with 4K Canon camera.

MICROSCOPE PREMIUM SPECIFICATIONS

• Prima DNT microscope with an intelligent LED illumination system
• Mounting system: mobile stand with 2 locking wheels
• Suspension arm: 1125 mm
• Magnichanger: 5 step magnichanger with magnification 0.4x, 0.6x, 1.0x, 1.6x and 2.5x
• Viewing bodies: ergonomic binocular tubes 0º-210º tiltable, IPD range 55-75 mm, f=170 mm
• Objective: NuVar 20
• Eyepieces: WF 10X/18 mm with foldable eye guards, diopter adjustment ± 5 mm with diopter lock
• Observation head: ergonomic adjustable handgrips for observation head
• Microscope carriers: 120º carrier
• Illumination: fiber optic illumination 50W LED, up to 60,000 hours of LED lamp lifetime, 135,000 Lux
• Input: AC 115-240V, 50/60Hz
• Filter: yellow and green filter with filter holder
• Vertical movement of arm: 600 mm
• Fuse: quick-acting fuse 1.0 Amp
• Standard accessories: dust cover for microscope observation head and illumination box
• Beam Splitter: Double beam Splitter, inclined
• DSLR: Camera Optics tube with all adapters to connect 4K camera
• DSLR Camera Optics tube: yes
• SD-card: yes
• Camera system: Canon EOSM 200 4K camera
• Camera USB output: on the arm of the microscope
• Bluetooth: yes, Bluetooth 4.2
• WiFi: yes, IEEE 802.11b/g/n
• Touch screen: 3.0-inch Touch Panel LCD screen that tilts up 180° and down 45°
• HDMI: 3x HDMI 4K output for multiple monitor use
• Wireless 4K: HDMI 4K, max. 30 meter, 60 frames/sec, Zero delay (<5ms), transmitter build on microscope and receiver for the monitor
• iPhone USB charging point: yes

DIMENSIONS (mm)

MOUNTING (mm)

CONFIGURATIONS
